Support 2×2 partition to get distance data

DTS6004

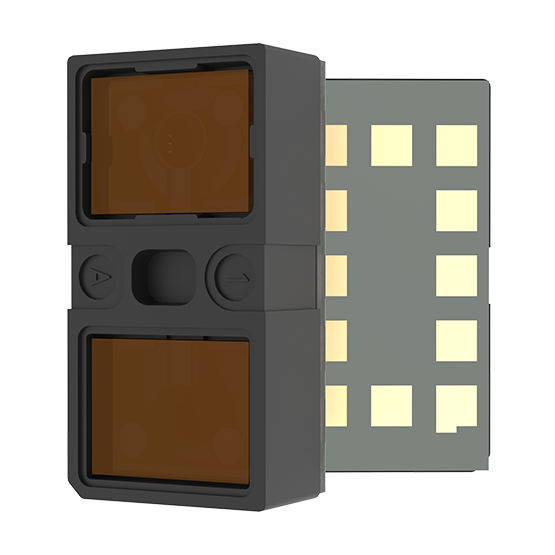

DTS6004 is a single-channel dToF (Direct Time of Flight) SiP mini-module, integrating a high-performance dToF SoC developed by PolarisIC as well as a VCSEL transmitter, which is able to achieve high-precision distance measurement within the range of 6m@88% reflectance target surface (indoor environment under 1k Lux light). The frame rate of single-point measurement is 30Hz, and the frame rate of 2×2-point measurement is 7.5Hz, supporting 2×2 time division and time zone acquisition of distance data.

DTS6004 is based on a high-performance SPAD sensor, with an on-chip integrated high-precision TDC and co-processor for efficient distance measurement.
The DTS6004 has a built-in histogram algorithm, resulting in excellent resistance to ambient light and the ability to calibrate for contaminants and reflectance to improve measurement data stability and consistency.

The DTS6004 uses a 940nm laser that meets Class 1 human eye safety requirements. Powered by a single power supply and based on an I²C interface for data communication, it is easy to integrate and use.

Highly integrated dToF SiP

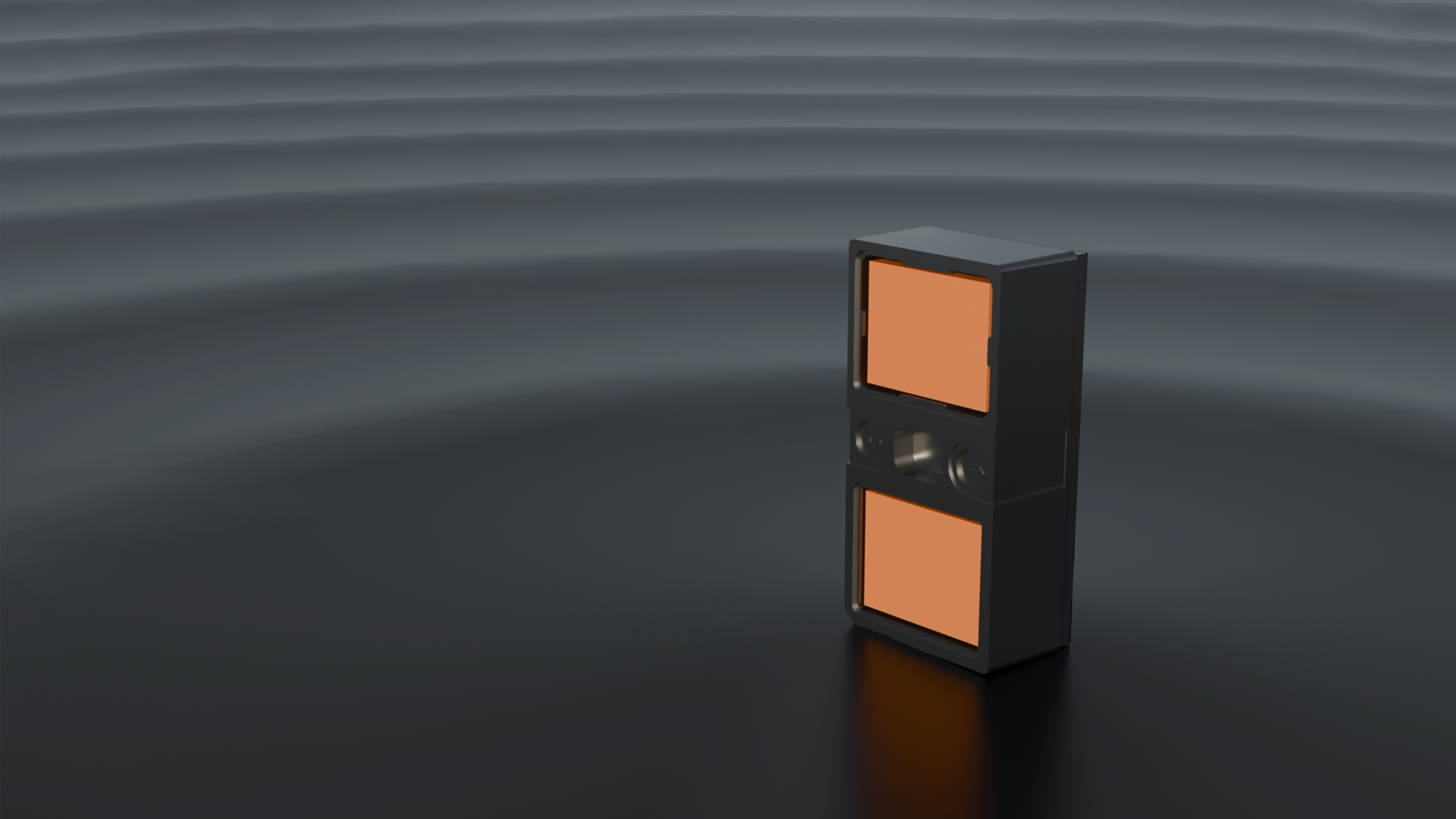

Integrating a high-performance dToF SoC and VCSEL emitter ,package Size 4.9mm×2.5mm×1.6mm.

Highly integrated dToF SiP

Integrating a high-performance dToF SoC and VCSEL emitter ,package Size 4.9mm×2.5mm×1.6mm.

Range up to 6m

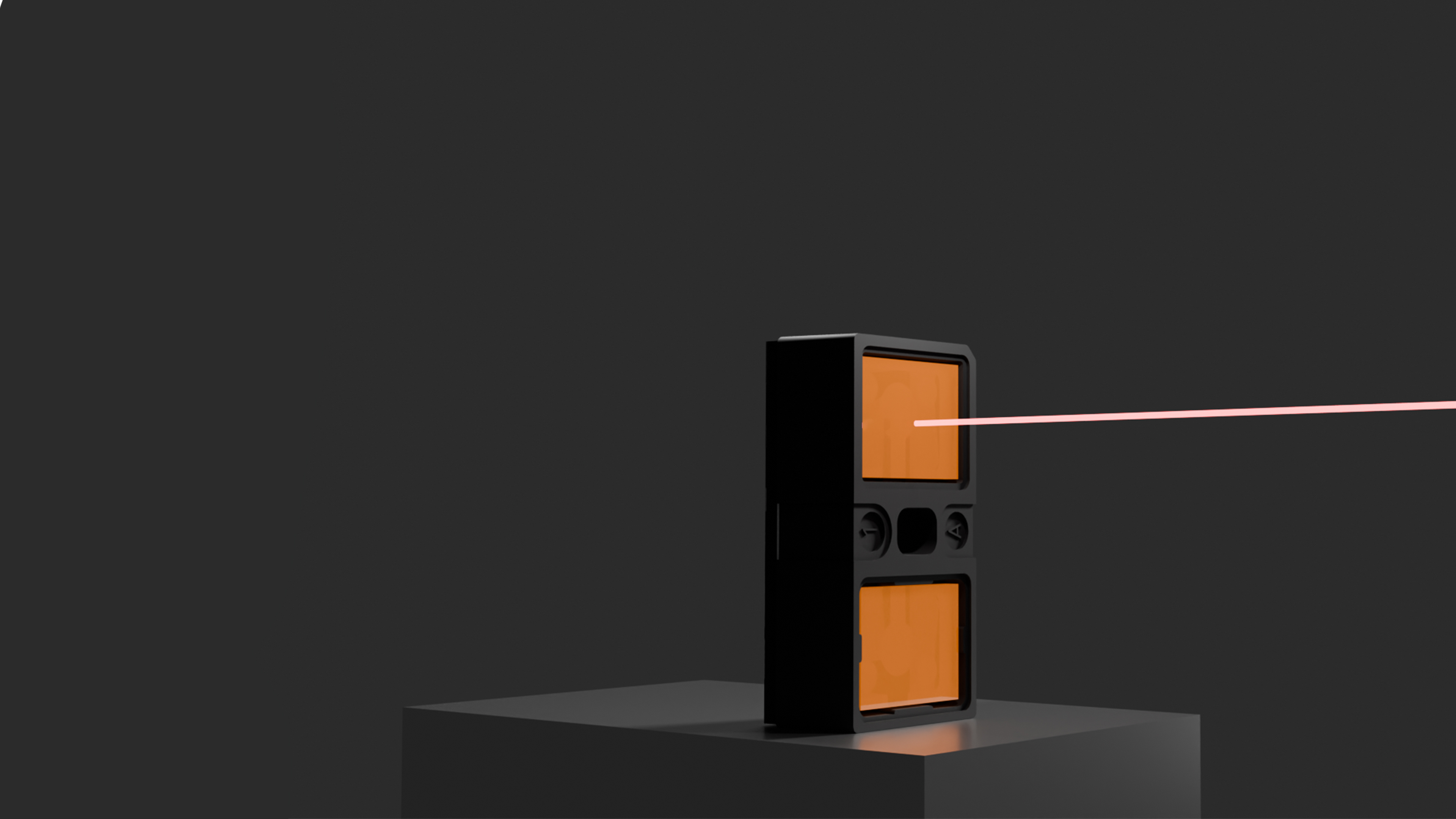

Single Point：6m @ 88% reflectivity target surface*
2×2 Points：4m@88% reflectivity target surface
*indoor environment under 1k Lux

Range up to 6m

Single Point：6m @ 88% reflectivity target surface*
2×2 Points：4m@88% reflectivity target surface
*indoor environment under 1k Lux

Support multi-zone for distance data acquisition

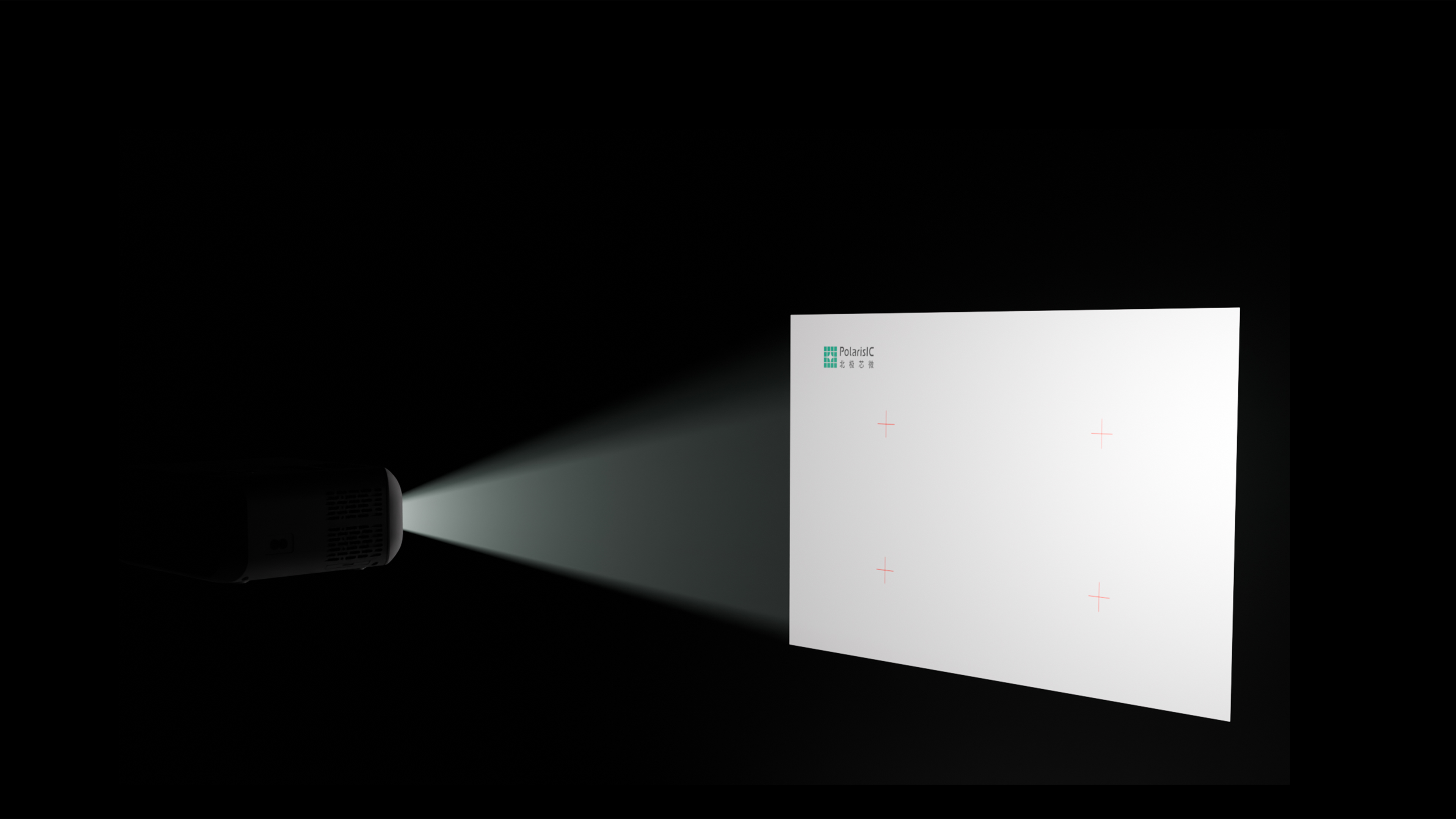

Support 2×2 zones for distance data acquisition

Support multi-zone for distance data acquisition

Support 2×2 zones for distance data acquisition

Accuracy of up to 3%

Highly accurate TDC with built-in reference SPAD enables high precision distance measurement.

Accuracy of up to 3%

Highly accurate TDC with built-in reference SPAD enables high precision distance measurement.

Multi-sensor access on I²C bus

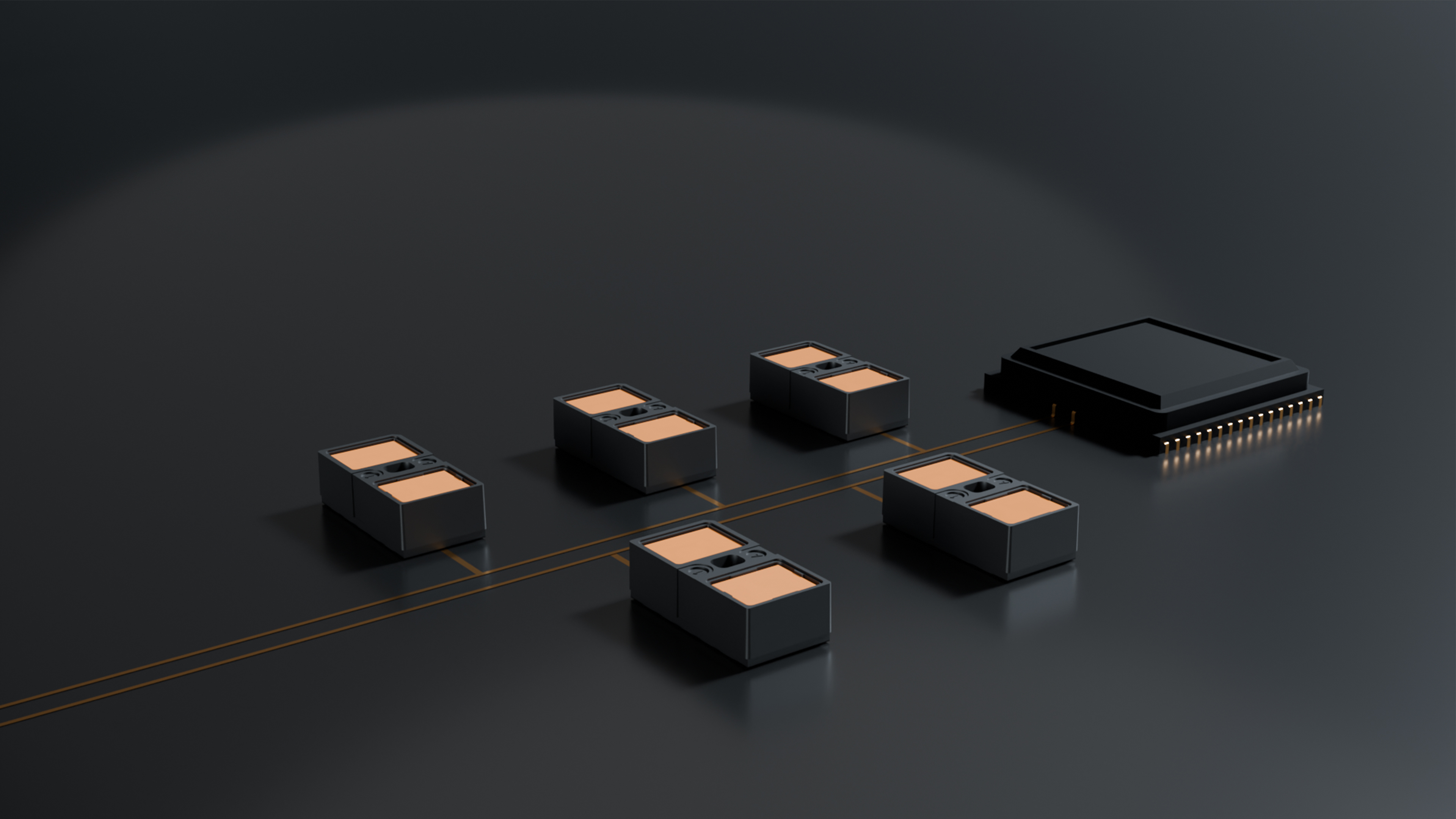

Supports multiple devices on the same I²C bus，saving interface resources of host.

Multi-sensor access on I²C bus

Supports multiple devices on the same I²C bus，saving interface resources of host.

Frame rate up to 30Hz

Single Point：30Hz 2×2 Points：7.5Hz

Frame rate up to 30Hz

Single Point：30Hz 2×2 Points：7.5Hz
